24 core fiber optic cable figure8 gytc8s outdoor single mode cables
Description of 24 core fiber optic cable figure8 gytc8s outdoor single mode cables
* Loose tube style, figure-8 optical fiber cable, Jelly compound, optical fiber cable with metallic central strength member of steel wire.
* Filling compound and water-proof tape armored with corrugated steel tape/AL incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.
Features of of 24 core fiber optic cable figure8 gytc8s outdoor single mode cables
* High strength, tracking-resistant sheath.
* GYXTC8S cable is accompanied with the stranded wires as the supporting part to be figure-8 structure.
* 250μm fibers are positioned into a loose tube made of high modulus plastics on the central of cable.
* The tube is filled with a water-resistant filling compound.
* Then the tube is surrounded with aramid yarn to ensure the high tensile strength.
* After that the cable is covered with thin PE (polyethylene) sheath.
Parameter Data
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Tension (N) | Crash loading(N/100mm) |
| Short term | Long term | Short term | Long term |
| 2-30 | 9.5*18.2 | 150 | ≥6000 | ≥2000 | ≥1000 | ≥300 |
| 32-48 | 10.2*18.9 | 162 |
| 50-60 | 10.2*19.2 | 173 |
| 62-72 | 10.9*19.9 | 197 |
| 74-84 | 12.1*21.1 | 217 |
| 86-96 | 12.1*21.1 | 217 |
1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,Loose tube filling compound
6,Aramid Yarn Provide additional mechanical protection
7,Loose tube filling compound
8,100% cable core filling
G.652D Single Mode Optical Fiber (B1.3) |
| | | |
| | | | |
| | | |
| | | |
| | | |
| | | | |
| | | |
| | | |
Zero-dispersion wavelength | | |
| | | |
| | PMD single fiber | | |
| PMD Q links | | |
| | 1310nm | | |
| | | |
| | | |
Core-cladding concentricity error | | |
| | | |
Cladding/coating concentricity error | | |
| | | |
Macrobend attenuation (ф 50mm, 100 cycles) | | | |
| | | |
| Bending radius | | |
| Dynamic fatigue parameters | | |
Additional Attenuation @1310nm & @1550nm | Temperature cycling test:
(-60℃～85℃, 3 cycles) | | |
| Water soak test:
(23℃ for 30 days) | | |
| Damp heat test:
(85℃, 85%RH for 30 days) | | |
Thermal aging test (85℃ for 30 days) | | |
| Warm water soak test: (60℃ for 15 days) | | |

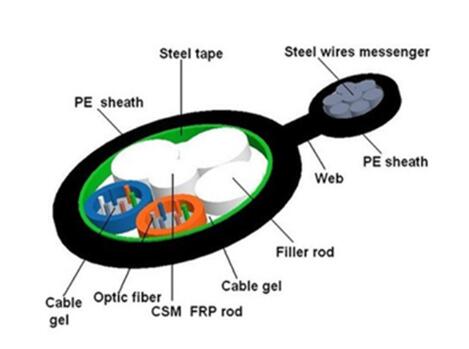

Drawings of 24 core fiber optic cable figure8 gytc8s outdoor single mode cables
