GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable

  • 1
  • 2
  • 3

Brand Name : GYTS GYFTY GJYXCH GYXTW ADSS FTTH Indoor Outdoor Fiber Optic Cable

Model Number : GYTS GYFTY GJYXCH GYXTW ADSS

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.50-USD15/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : Orange

Fiber Type : OM3

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 4/6/8/12

Product Name : GYTS GYFTY GJYXCH GYXTW ADSS FTTH Indoor Outdoor Fiber Optic Cable

Contact Now

GYTS GYFTY GJYXCH GYXTW ADSS FTTH Indoor Outdoor Fiber Optic Cable

Product Description:

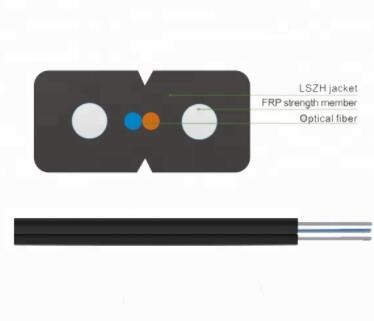

  • The optical fiber unit is positioned in the center.
  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.

Features:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance

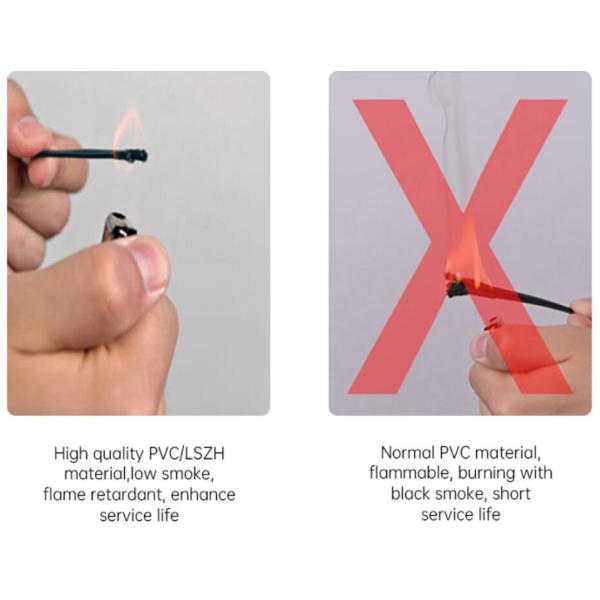

  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

Application

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Fiber Characteristic:

Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
Item
Technology parameter
Cable type
Drop Cable
Cable Count
1 2 4 6 8 12
Fiber color
Green, Yellow
Fiber type
9/125 (G657A2)
Sheath color
Black and white
Sheath material
LSZH
Cable dimension (mm)
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)
15
Min. bending radius (mm)
10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)
0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)
200; 600
Crush resistance (N/100mm)
1000; 2200
Operation temperature (℃)
-20~+70℃
Technical data:

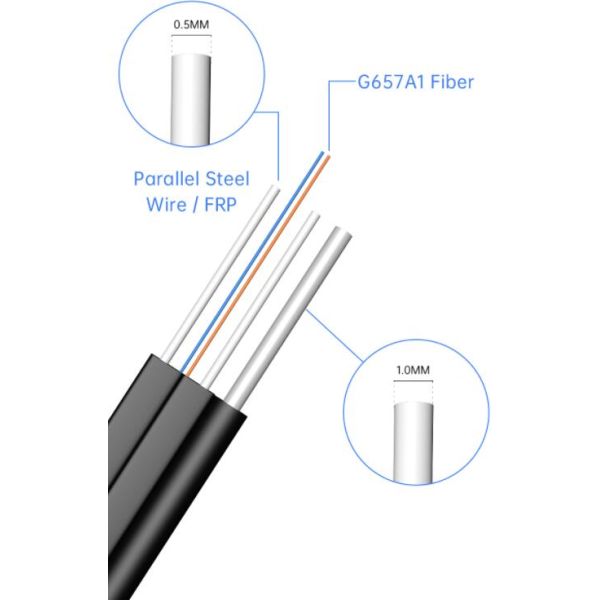

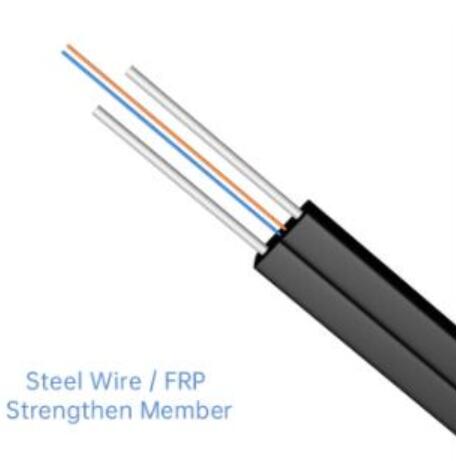

strength member
material
Galvanized steel wire/FRP/KFRP
diameter
2*(0.5~0.8)mm

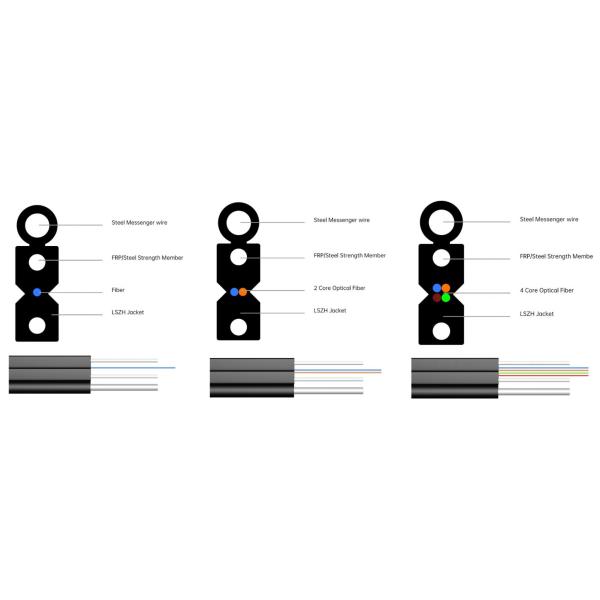

Self support Messenger wire
material
Galvanized steel wire
diameter
1.0mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
1~2core
18.2KG
4-6 core
18.5KG
8~24core
54KG

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N 500
Tension(Short Term) N 1000
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 2200
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
More products
GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable
FAQ
Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: T/T, L/C.

Q4: What kind of cable do you produce?

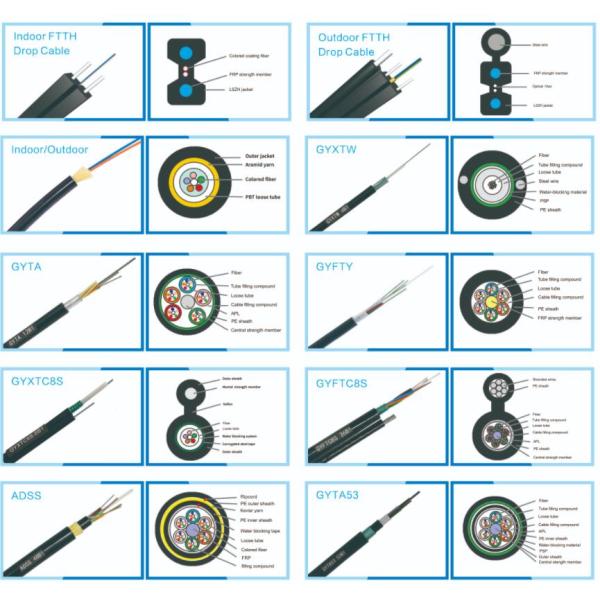

A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
